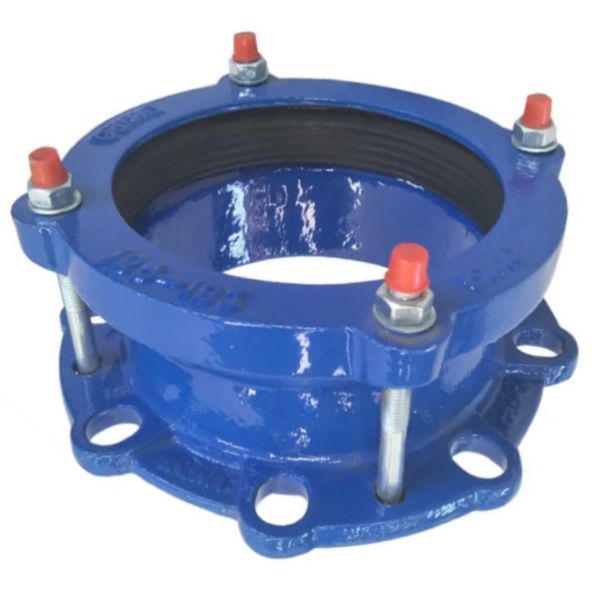

EN124 DI Galvanized Carbon Steel Universal Coupling PE/PVC/Steel Pipe Connector
Product Introduction
The dresser coupling consists of a loose sleeve expansion joint and two spacing stubs. It is mainly used to absorb axial displacement and loose pipe connections under axial pressure and thrust within the allowable displacement range.
Product features
1. Wide range of compensation
2. High transmission torque
3. High transmission accuracy
4. Simple maintenance
5. Adaptable
Product application field
A wide range of flexible compensation joints are widely used in automobiles, agricultural machinery, industrial equipment and other fields. For example, in automobiles, it is used to transmit power, transmitting the turning motion of the engine to the wheels. In agricultural machinery, it transmits the movement of the motor to the various parts of the agricultural machinery. In industrial equipment, it connects two devices and compensates for the displacement offset of the equipment to ensure the normal operation of the equipment.
Product parameters
| | DN50mm~DN1200mm |
| | Ductile iron, carbon steel |
| | ISO2531, EN12842, ISO4422 |
| | PN10, PN16 |
| | Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting |
| | NBR or EPDM |
| | Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316 |
| | Blue, black or as per customer's request |
| | For air, water, sewer and gas pipelines |
| | Wooden cases, protection layer or as per customers' requirement |
| DN | OD Range(mm) | L(mm) | D (mm) | Bolt |
| Size | Quantity |
| 50 | 59-72 | 102 | 165 | M12*180 | 2 |
| 65 | 72-85 | 102 | 185 | M12*180 | 2 |
| 80 | 88-103 | 102 | 185 | M12*180 | 4 |
| 100 | 109-128 | 102 | 218 | M12*180 | 4 |
| 125 | 132-146 | 102 | 250 | M12*180 | 4 |
| 150 | 159-182 | 102 | 272 | M12*200 | 4 |
| 175 | 192-210 | 130 | 312 | M12*200 | 4 |
| 200 | 218-235 | 130 | 335 | M12*220 | 6 |
| 250 | 272-289 | 130 | 405 | M12*220 | 6 |
| 300 | 315-332 | 130 | 460 | M12*220 | 6 |
| 300 | 322-339 | 130 | 435 | M12*220 | 6 |
| 350 | 340-360 | 150 | 455 | M12*250 | 6 |
| 350 | 351-368 | 150 | 518 | M16*250 | 8 |
| 350 | 374-391 | 150 | 568 | M16*250 | 8 |
| 400 | 400-429 | 150 | 580 | M16*250 | 8 |
| 400 | 418-435 | 150 | 580 | M16*250 | 8 |
| 400 | 425-442 | 150 | 625 | M16*260 | 8 |
Tips:The above data is only part of the data, if you need a special size, please contact us.
Related products
To choose us is to choose rest assured and trust.
1.Bellow Expansion Joint
2.Double Flange Expansion Joints
3.Dismantling Joint
4.Flange Adaptor
5.Single Sphere Rubber Joint
6.Double Sphere Rubber Joint
7.Gate Valve
8.Butterfly Valve
Precautions for product installation and maintenance
When installing a wide range of flexible compensation joints, the following points need to be noted:
1. Pre-installation inspection: Make sure that the joint is not damaged, there is no foreign matter, and the connection part is clean and smooth.
2. Correct installation: Install the joint correctly according to the instructions to ensure that it can move freely within the predetermined range.
3. Regular inspection: Regularly check the wear and tear of the joints, and replace the damaged parts in time.
4. Maintenance: Keep the environment around the joint clean to avoid impurities from entering and affecting its performance.
Packaging & Shipping
In terms of packaging, we will wrap the products in film paper and then put them in wooden boxes and label them on the outside.
In terms of transportation, Qingdao Port usually chooses sea freight. If customers have special requirements, we can also change them according to the actual situation.
